Kabelfarben Blinkerschalter Ducati Hypermotard 821 Bj. 2013


Recommended Posts

Hallo



Kann mir jemand die Kabelfarben sagen am Blinkerschalter für den rechten und linken Blinker und dem Relais?

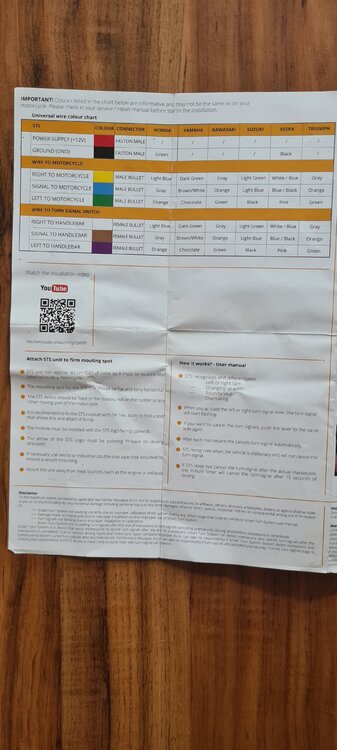

Hier noch paar Bilder vom Blinkerschalter und vom Kabel was richtung Lampe verläuft mit Stecker.



Diese Kabelfarben gehen vom Schalter weg. Die Frage ist nur welches Kabel ist für den rechten und linken Binker und für das Blinkrelais.



Braun

Schwarz

Grau



So wie ich das erkenne dann



Ducati Hypermotard 821 Bj.2013















Edited by alexs81
Link to comment
Share on other sites

Am 3.5.2024 um 19:42 schrieb alexs81:

Hallo



Kann mir jemand die Kabelfarben sagen am Blinkerschalter für den rechten und linken Blinker und dem Relais?



Hier noch paar Bilder vom Blinkerschalter und vom Kabel was richtung Lampe verläuft mit Stecker.



Diese Kabelfarben gehen vom Schalter weg. Die Frage ist nur welches Kabel ist für den rechten und linken Binker und für das Blinkrelais.



Braun

Schwarz

Grau



So wie ich das erkenne dann



Ducati Hypermotard 821 Bj.2013































Das Teil muss ich an die Kabel vom rechten, linken und Blinkerrelaus klemmen. Den Rest bekomme ich selber noch hin 🫣😁
